Ventriloquist Wired & Wireless Voice Release






































































































































































































































































































































VEN-Wireless-Trap Transmitter and Receiver

Part No: VEN-Wireless-Trap
Number of Microphones:  1
Wired or Wireless?: Wireless
• 12 V Power Source
• Trap Transmitter
• The wireless unit uses microprocessor based technology to recognize a voice and provide selectable target sequences (skeet) and delay options.
• The shooter's signal to the target machine(s) is transmitted via an FM signal
• Each additional release is $250.00

Trap Transmitter
Actual Dimensions -- 5.5" X 3.5" X 1.25"
1. PWR (Power)
Turns transmitter on/off.
2. PTR (Push To Release)
Manual target release.
3. MICROPHONE SENSITIVITY
Sets minimum level of sound
required to activate "voice"
recognition program.
4. TEST
Flashes when "voice" is
recognized and signal transmitted.
5. LOW BATTERY
Is lit when battery is too
low for effective operation.

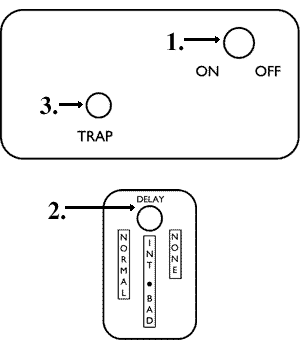

Trap Receiver
Actual Dimensions -- 6.25" X 3.5" X 1.75"
1. ON/OFF
Turns receiver on/off.
2. DELAY
Sets release time

•INT • BAD
Bad Puller delay on trap versions.
3. LED (Light Emitting Diode)
LED shows when target is released.


Price: $650.00
VEN-Wireless-Skeet Transmitter and Receiver

Part No: VEN-Wireless-Skeet
Number of Microphones:  1
Wired or Wireless?: Wireless
• 12 V Power Source
• Skeet Transmitter
• The wireless unit uses microprocessor based technology to recognize a voice and provide selectable target sequences (skeet) and delay options.
• The shooter's signal to the target machine(s) is transmitted via an FM signal
• Each additional release is $300.00

Skeet Transmitter
Actual Dimensions -- 5.5" X 3.5" X 1.25"
1. PWR (Power)
Turns transmitter on/off.
2. S(equence), D(oubles), L(ow), H(igh)
Selects target to be released.
(SKEET VERSION ONLY)
3. PTR (Push To Release)
Manual target release.
4. MICROPHONE SENSITIVITY
Sets minimum level of sound
required to activate "voice"
recognition program.
5. TEST
Flashes when "voice" is
recognized and signal transmitted.
6. LOW BATTERY
Is lit when battery is too
low for effective operation.

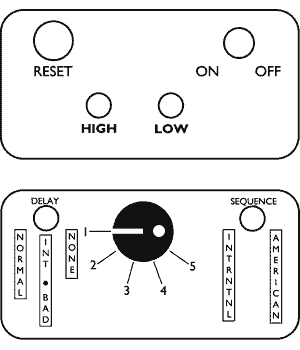

Skeet Receiver
Actual Dimensions -- 6.25" X 3.5" X 1.75"
1. ON/OFF
Turns receiver on/off.
2. RESET
Reset sequence to beginning (High 1).
3. SEQUENCE
Selects American or International target sequence.

4. NUMBER OF SHOOTERS
SHOOTERS (1 TO 5).
"DASH" arms International Skeet delay.
"DOT" changes International Skeet delay
to Bad Puller delay.
5. DELAY
Sets release time

•NONE
Instantaneous Release
•NORMAL
.2 sec. delay (Corresponds to reaction
time of average puller.)
•INT • BAD
Intrntnl Skt random delay (0 - 3 sec.)
if Number of Shooters selected by "DASH"
Bad Puller delay if Number of Shooters
selected by "DOT".(random .1 -.4 sec.)
6. LED(s) (Light Emitting Diode)
LEDs show which target is being released (High/Low).



Price: $795.00
